U-Posts vs. T-Posts: Structural Engineering for Optimal Fence Performance
Time:
2025-06-03
Selecting the Right Steel Post: Load Capacity, Terrain & Longevity Factors
Choosing between U-posts and T-posts isn't just about shape – it's about soil physics, tensile loading, and decades of maintenance costs. We break down the engineering realities most suppliers ignore.

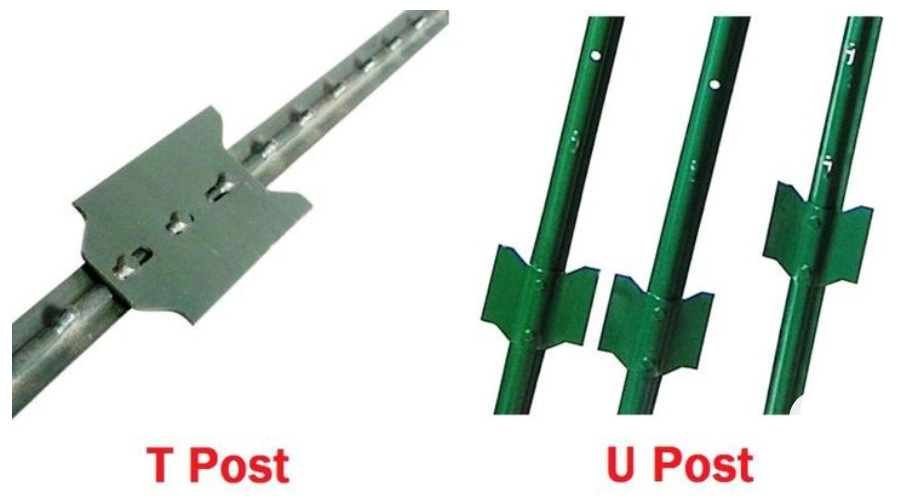

Critical Differences: Beyond Basic Shapes
| Parameter | U-Post | T-Post |
|---|---|---|
| Moment of Inertia | 28 cm⁴ (Low rigidity) | 112 cm⁴ (High rigidity) |
| Anchor Design | Shallow flanges (15cm) | Deep-spade plate (30cm) |
| Yield Strength | 235 MPa (ASTM A36) | 550 MPa (Rail steel) |
| Wind Load Cap. | 45 mph (20m/s) | 75 mph (33m/s) |
| Install Depth | 1:3 Height ratio | 1:2.5 Height ratio |
Terrain-Specific Recommendations
When U-Posts Excel
☞ Sandy Loam Soil: Flanges prevent rotation in granular substrates
☞ Temporary Fencing: 30% faster install/removal
☞ Low-Tension Apps: PVC-coated garden mesh, snow fencing
☞ Slopes <15°: Flexible base accommodates minor shifts

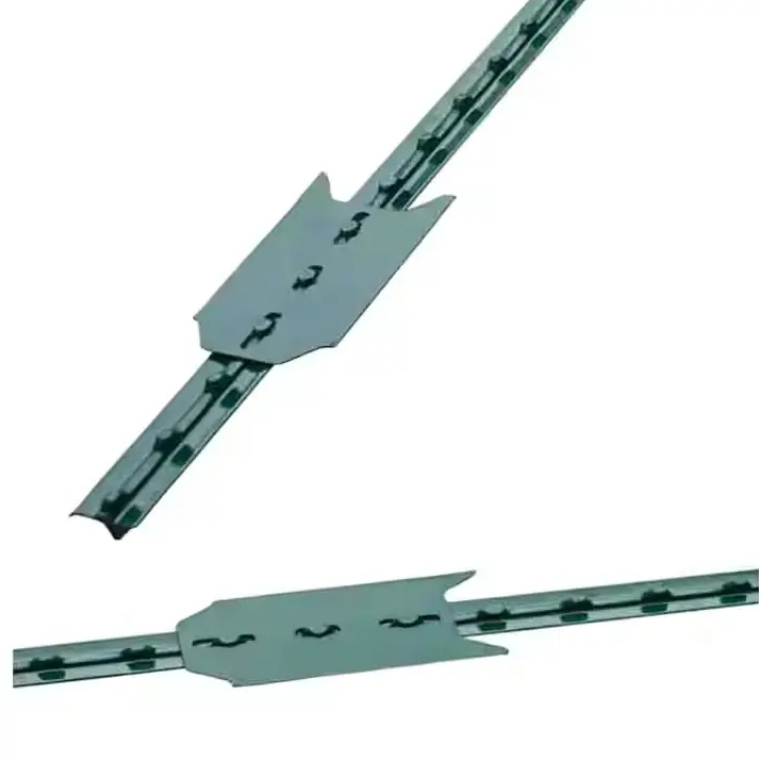

When T-Posts Dominate
♛ Clay/Rocky Soil: 8mm tip penetrates caliche layers
♛ Livestock Pressure: Withstands 1,200N impact (tested per ISO 2232)
♛ High-Tension Wire: Barbed, woven, or electrified fencing
♛ Permafrost Zones: Ductile steel resists frost heave cracking
Cost Analysis: 10-Year Ownership
| Type | Initial Cost/100ft | Maintenance | Replacement Cycle | Total Decade Cost |
|---|---|---|---|---|
| U-Post | $85 | $20/yr | 3 years | $365 |
| T-Post | $140 | $5/yr | 15+ years | $190 |
Assumes galvanized models in temperate climate
Advanced Hybrid Installation Techniques
Corner Reinforcement System:
Wood Corner Post → T-Post (24" offset) → U-Posts (6ft spacing) Why? T-posts absorb diagonal tension; U-posts simplify line wire attachment.
Seismic Zone Adaptation:
T-posts: Drive at 10° outward angle
U-posts: Weld cross-brace at groundline
FAQs: Solving Professional Dilemmas
Q: Can U-posts handle welded wire for goats?
A: Only for 48" height or less. Use T-posts for climbing species (goats/deer).
Q: Why do T-posts fail in marsh soil?
A: Electrolytic corrosion. Specify hot-dip galvanized (G140) + PVC sleeve below grade.
Q: Minimum T-post thickness for hurricane zones?
A: 2.6mm with 36" embedment + concrete collar. Space at 5ft intervals.
Q: How recycle bent U-posts?
A: Cut below bend → weld as ground stakes. Not cost-effective to straighten.
Q: Safe installation near underground utilities?
A: U-posts pose 40% lower puncture risk due to blunt tips.
Pro Tips
Anti-Theft: Weld rebar crossbars below grade on T-posts
Quick Repair: Slot damaged U-posts over new posts as sleeves
Noise Reduction: Wrap T-post clips with bicycle inner tubes
Tool Innovation: Rent our Laser-Guided Post Driver - ensures ±1° vertical alignment on slopes.
