What is a 3D Curved Fence?
Time:
2025-06-04
Unleash Strength & Style: The Ultimate Guide to 3D Curved Fence Panels
3D Curved Fence Panels, also known as Triangular Bending Security Mesh, represent a revolutionary leap in fencing technology. Engineered with distinctive 2-4 horizontal curves that form integrated triangular reinforcements, these panels deliver unmatched structural rigidity, visual appeal, and formidable security. Forget flimsy flat meshes – discover the future of robust, adaptable, and aesthetically pleasing boundaries.
Why 3D Curved Panels Outperform Standard Fencing:
Unrivaled Structural Integrity:
The signature triangular bends act as continuous internal braces, transforming the mesh into a unified, high-tensile structure. This dramatically increases resistance to impact, cutting, and climbing attempts compared to flat welded mesh.
Superior Aesthetics:
The elegant curves create dynamic visual lines and depth, offering a modern, industrial-chic appearance that enhances property value. Available in various colors to complement any architectural style.
Enhanced Durability:
Constructed from high-tensile, low-carbon steel wire (3.0mm - 6.0mm diameter) and protected by advanced surface treatments, these panels resist corrosion, weathering, and physical stress for decades.
Terrain Adaptability:
The inherent strength and flexible connection systems allow installation on sloping or uneven ground without compromising security or appearance.
Versatile Integration:
Seamlessly pairs with diverse post profiles: Square Posts (e.g., 50x50mm, 60x60mm, 80x80mm, 100x100mm), Rectangular Posts (e.g., 40x60mm, 40x80mm), Peach Shaped Posts (e.g., 50x70mm, 70x100mm), and Round Posts (e.g., Ø38mm, Ø40mm, Ø48mm).
Simplified Installation:
Pre-fabricated panels with standardized dimensions ensure faster, more efficient installation than traditional fencing systems.

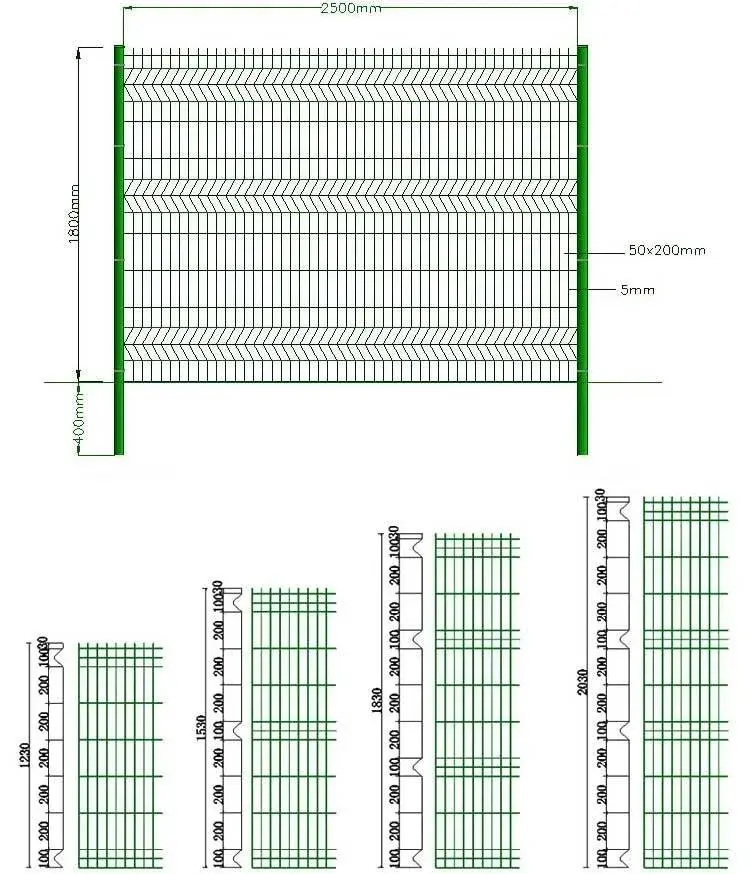

Precision Engineering: 3D Curved Fence Panel Specifications
| Feature | Specification | Importance |
|---|---|---|
| Core Material | High-Quality Low Carbon Steel Wire | Provides foundational strength and weldability. |
| Wire Diameter | 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm | Dictates panel strength & security level (thicker = stronger). |
| Mesh Opening | 50 mm x 100 mm, 55 mm x 100 mm, 50 mm x 200 mm, 55 mm x 200 mm (Standard) | Balances visibility, security, and airflow. Custom openings available. |
| Panel Height | 0.5 m - 4.0 m (Common: 830mm, 1030mm, 1230mm, 1530mm, 1730mm, 2030mm, 2430mm) | Suits diverse security needs from garden borders to high-security perimeters. |
| Panel Length | 2.5 m or 3.0 m (Standard) | Optimized for handling, transport, and installation efficiency. |
| Number of Curves | 2 Curves: Up to ~1430mm 3 Curves: ~1530mm - 1830mm 4 Curves: 2030mm+ | Height-dependent curves maximize structural reinforcement. |
| Surface Treatment | 1. Hot-Dipped Galvanized (HDG): Zinc layer for sacrificial corrosion protection. 2. PVC Coated (after HDG): Plastic layer for enhanced corrosion resistance & color. 3. Powder Coated (after HDG): Durable paint finish for aesthetics & protection. | Critical for longevity: HDG provides base protection; PVC/Powder adds color, extra corrosion resistance, and UV stability. |
| Popular Colors | RAL 6005 (Green), RAL 7016 (Grey), RAL 9005 (Black) - All RAL colors customizable | Blends with environments or creates bold architectural statements. |
Unmatched Protection: Surface Treatment Options
Hot-Dipped Galvanized (HDG):
The steel panel is immersed in molten zinc, creating a thick, bonded metallic coating that provides superior sacrificial corrosion protection, ideal for harsh environments. Offers a classic metallic silver finish.
PVC Coated (Vinyl Coated):
Applied over the HDG layer. A durable PVC plastisol coating provides an extra barrier against corrosion, scratches, and UV degradation. Available in multiple colors (especially popular Green, Grey, Black), offering a smoother finish and enhanced aesthetics.
Powder Coated:
Applied over the HDG layer. Electrostatically charged dry powder is sprayed and baked onto the metal, forming a hard, uniform, and highly resistant finish. Offers excellent color retention, chip resistance, and a wide range of color options (RAL palette).

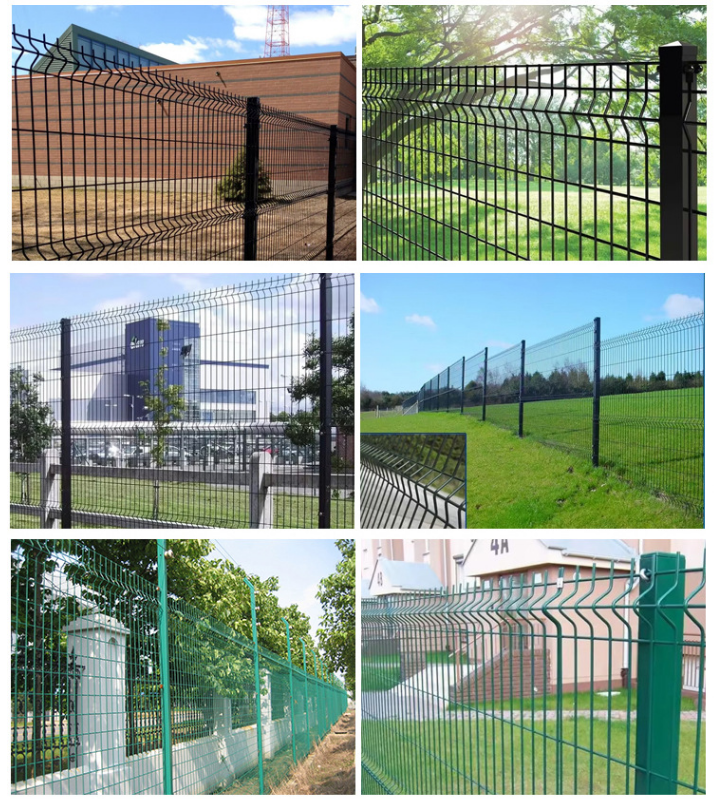

Proven Applications: Where 3D Curved Security Excels
Residential Security: Perimeter fencing for homes, villas, and apartment complexes (Peach Shaped or Square Posts popular).
Industrial & Commercial Protection: Factories, warehouses, logistics centers, power plants, equipment yards (Robust Rectangular or Square Posts).
Critical Infrastructure: Airports, railway stations, power substations, military installations (High panels with 4 curves).
Public & Recreational Spaces: Sports stadiums, schools, parks, zoos (Combines security with visibility).
Transportation Corridors: Highway sound barriers, service area enclosures, bridge security.
Agricultural Security: Livestock enclosures, farm perimeters, equipment storage.
Frequently Asked Questions (FAQs):
Q: What is the main purpose of the curves in 3D fence panels?
A: The horizontal triangular bends are not decorative; they are structural reinforcements. They significantly increase the panel's rigidity and tensile strength, making it vastly more resistant to impact, cutting, deformation, and climbing compared to standard flat welded mesh panels. They act like built-in braces.
Q: Which surface treatment is best: Galvanized, PVC Coated, or Powder Coated?
A: Hot-Dipped Galvanized (HDG) is the essential base layer for corrosion protection. For maximum longevity and aesthetics:
Choose HDG only for cost-effective industrial/utility applications where appearance is secondary.
Choose PVC Coated over HDG for excellent corrosion resistance, vibrant color options, good scratch resistance, and a slightly softer feel. Common for residential and public areas.
Choose Powder Coated over HDG for superior hardness, chip resistance, UV stability, and a wide, precise color range (RAL). Ideal for architectural projects and harsh environments.
Q: Can 3D curved fences be installed on slopes?
A: Yes, a key advantage! The panel's inherent strength and the use of raked (angled) posts or stepped installation techniques allow 3D curved fencing to conform effectively to uneven or sloping terrain without creating weak points or compromising security.
Q: Are these panels difficult to install?
A: Generally, no. Pre-fabricated panels (standard lengths 2.5m/3.0m) significantly speed up installation compared to building fences on-site. They connect securely to posts (fixed with bolts or clamps) following straightforward procedures. Professional installation is recommended for optimal results and tension.
Q: How high can a 3D curved security fence be?
A: Standard panels are readily available up to 4.0 meters (2430mm is common for high-security). The number of reinforcing curves increases with height (e.g., 4 curves for heights over 2 meters). Custom heights are often possible.
Q: How do I choose the right wire diameter and mesh size?
A: Consider security level and visibility needs:
Wire Diameter: 4.0mm - 5.0mm is common for robust residential/commercial security. 5.0mm - 6.0mm offers maximum deterrence for high-security sites. Thinner wires (3.0mm-3.5mm) suit less critical boundaries.
Mesh Size: 50x100mm / 55x100mm offers good visibility and security. 50x200mm / 55x200mm provides more open visibility while still deterring climbing. Smaller openings offer higher security but less visibility.
Invest in Uncompromising Security & Style
3D Curved Fence Panels are the intelligent choice for property owners and project managers demanding superior strength, lasting durability, modern aesthetics, and adaptable installation. By integrating innovative triangular bending technology with robust materials and premium finishes, this fencing solution delivers unparalleled perimeter protection and visual appeal for virtually any application. Move beyond traditional fencing – secure your asset with the structural advantage of 3D curvature.
